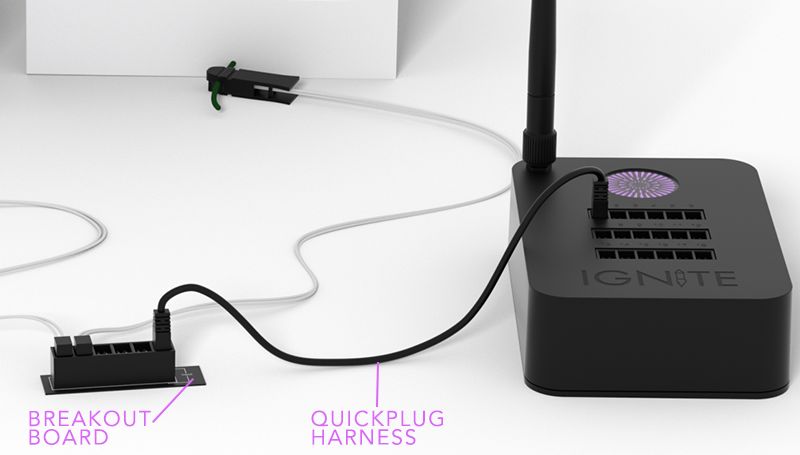

Breakout Boards are a convenient, re-usable solution for wiring multiple igniters to a single cue.
Includes:
You have selected a Quickplug Harness for use with an IGNITE Breakout Board. For safe and effective operation, it's important to adhere to the maximum firing specifications.
Following these specifications helps ensure that all igniters fire as expected. Exceeding the recommended limits may lead to igniters not firing, especially in synchronized or complex firing setups.
The tables below outline the maximum number of igniters that can be fired per cue, when using a single Breakout Board and Quickplug Harness.
Note that in when triggered, each cue sends a continuous 2-second pulse. If multiple cues are triggered within this time frame, the overlapping pulses count toward the maximum firing specifications. For more information on pulse times and their impact on firing capacity, please see our Help Article.
| Quickplug Harness Length | 2M Clip-On | 4M Clip-On | 6M Clip-On |
|---|---|---|---|
| 1ft (0.3m) Quickplug Harness | 2 | 2 | 2 |
| 6.5ft (2m) Quickplug Harness | 2 | 2 | 2 |
| 19.5ft (6m) Quickplug Harness | 2 | 2 | 2 |
If you have any questions about maximum firing specifications, pulse times, or anything else, please contact us, we are happy to help.
